7 ChIPseeker Peak Annotation

Cell Ranger ARC’s own peak-to-gene annotation is cross-checked here against an independent annotation from ChIPseeker::annotatePeak(), for each sample’s set of accessible peaks split by Healthy vs. PASC. This is a validation step on the raw per-sample data (as loaded in the Data Loading chapter), rather than a step in the main integration pipeline, so it does not depend on the merged combined object.

7.1 Load libraries and gene annotation

library(Seurat)
library(Signac)
library(ChIPseeker)
library(GenomicRanges)
library(UpSetR)
library(ggupset)
library(patchwork)
library(TxDb.Hsapiens.UCSC.hg38.knownGene)
library(org.Hs.eg.db)
library(BSgenome.Hsapiens.UCSC.hg38)

7.2 Per-sample donor -> condition mapping

Reuses the sample/donor -> condition assignment established in the Donor Assignment chapter.

condition_by_sample_donor <- c(
  "Sample_B_donor1" = "PASC",    "Sample_B_donor0" = "Healthy",
  "Sample_C_donor0" = "PASC",    "Sample_C_donor1" = "Healthy",
  "Sample_D_donor0" = "PASC",    "Sample_D_donor1" = "Healthy"
)

7.3 Annotate accessible peaks per sample

For each sample: the raw filtered feature-barcode matrix is loaded, cells are labelled Healthy/PASC from the SNP demultiplexing result, ATAC counts are aggregated by condition, and peaks with non-zero counts in each condition are annotated against Cell Ranger’s own atac_peak_annotation.tsv and against ChIPseeker::annotatePeak().

annotate_sample_peaks <- function(sample_name, cellranger_dir) {
  raw.lib <- Read10X_h5(file.path(cellranger_dir, "outs/filtered_feature_bc_matrix.h5"))

  cnts <- CreateSeuratObject(counts = raw.lib$`Gene Expression`,
                             assay = "RNA",
                             project = sample_name,
                             names.delim = "-", names.field = 2)

  cnts[["ATAC"]] <- CreateChromatinAssay(
    counts = raw.lib$Peaks,
    fragments = file.path(cellranger_dir, "outs/atac_fragments.tsv.gz"),
    sep = c(":", "-"),
    genome = "hg38"
  )

  demux <- read.table(file.path(dirname(cellranger_dir),
                                "scSNPdemux", paste0(basename(cellranger_dir), ".demux"),
                                "results/donor_ids.tsv"),
                      header = TRUE)
  rownames(demux) <- demux$cell
  cnts <- AddMetaData(cnts, metadata = demux)
  cnts$sample_donor <- paste0(sample_name, "_", cnts$donor_id)
  # unname(): indexing a named vector by a character vector returns a result
  # named after the *query* strings ("Sample_B_donor1", ...), not after
  # anything in `cnts` — assigning that named vector as-is makes Seurat try
  # to align by those (non-barcode) names against the object's cells and
  # fail with "No cell overlap between new meta data and Seurat object".
  cnts$individual_condition <- unname(condition_by_sample_donor[cnts$sample_donor])

  sum_peaks <- AggregateExpression(cnts, group.by = "individual_condition", assays = "ATAC")[["ATAC"]]
  bool_mat <- as.matrix(sum_peaks > 0)

  peak_anno <- read.table(file.path(cellranger_dir, "outs/atac_peak_annotation.tsv"),
                          sep = "\t", header = TRUE)
  peak_anno$name <- paste0(peak_anno$chrom, "-", peak_anno$start, "-", peak_anno$end)

  make_peak_gr <- function(condition) {
    peaks_found <- data.frame(name = names(which(bool_mat[, condition])))
    xx <- merge(peak_anno, peaks_found)
    GRanges(seqnames = xx$chrom,
           ranges = IRanges(start = xx$start, end = xx$end),
           peak_type = xx$peak_type)
  }

  conditions <- colnames(bool_mat)
  peakAnno1 <- annotatePeak(make_peak_gr(conditions[1]),
                            TxDb = TxDb.Hsapiens.UCSC.hg38.knownGene,
                            tssRegion = c(-3000, 3000), annoDb = "org.Hs.eg.db")
  peakAnno2 <- annotatePeak(make_peak_gr(conditions[2]),
                            TxDb = TxDb.Hsapiens.UCSC.hg38.knownGene,
                            tssRegion = c(-3000, 3000), annoDb = "org.Hs.eg.db")

  list(conditions = conditions, peakAnno1 = peakAnno1, peakAnno2 = peakAnno2)
}

TxDb = TxDb.Hsapiens.UCSC.hg38.knownGene is passed explicitly to annotatePeak() — the original script loaded this package but passed TxDb = NULL, which leaves annotatePeak() without a gene model to annotate against.

7.4 Sample B

resultB <- annotate_sample_peaks("Sample_B", "~/data/tasks/liam.kealy/processing/cellranger_SC_ATAC_covid_B")

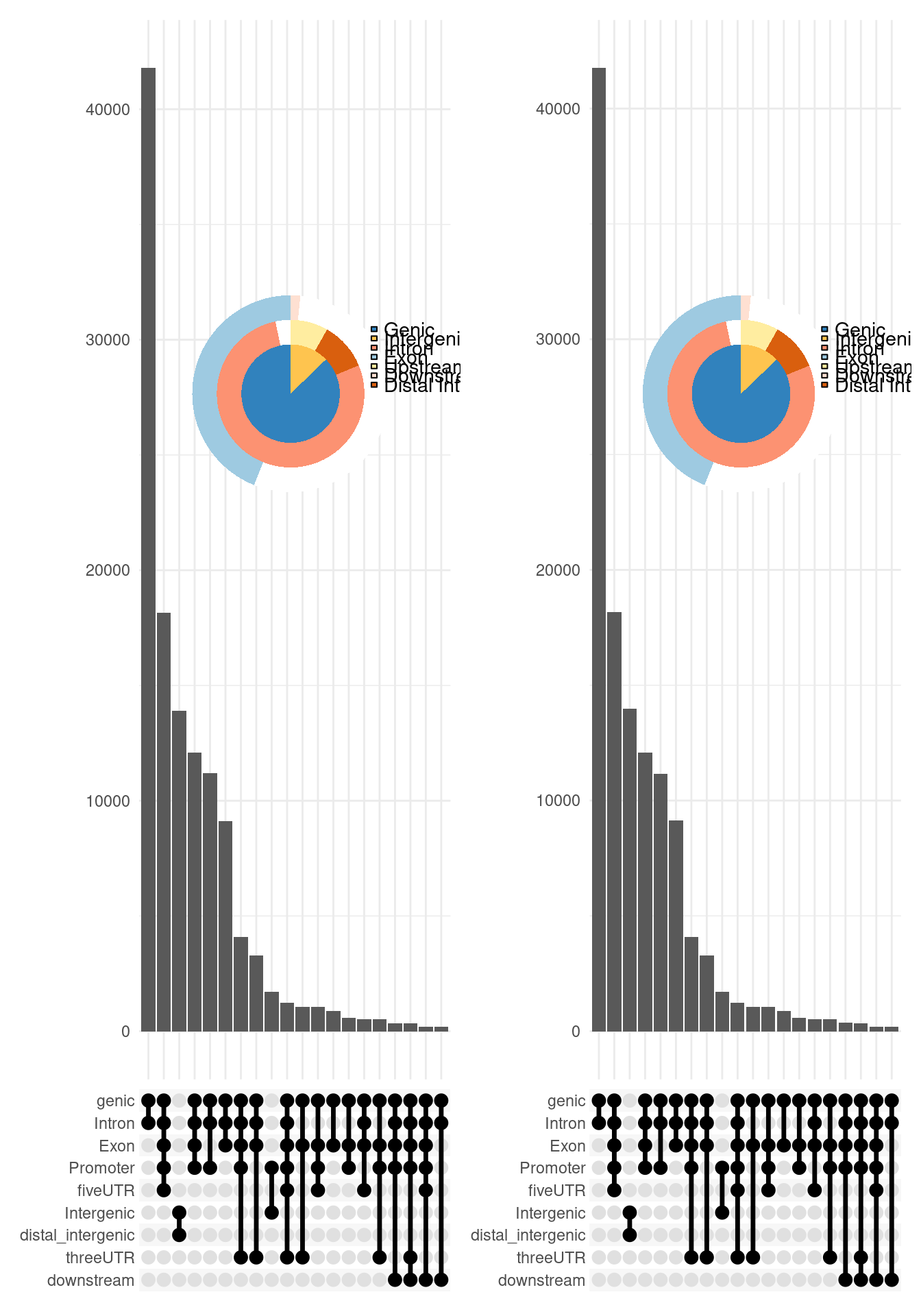

Left: Healthy — Right: PASC

upsetplot(resultB$peakAnno1, vennpie = TRUE) | upsetplot(resultB$peakAnno2, vennpie = TRUE)

7.5 Sample C

resultC <- annotate_sample_peaks("Sample_C", "~/data/tasks/liam.kealy/processing/cellranger_SC_ATAC_covid_C")

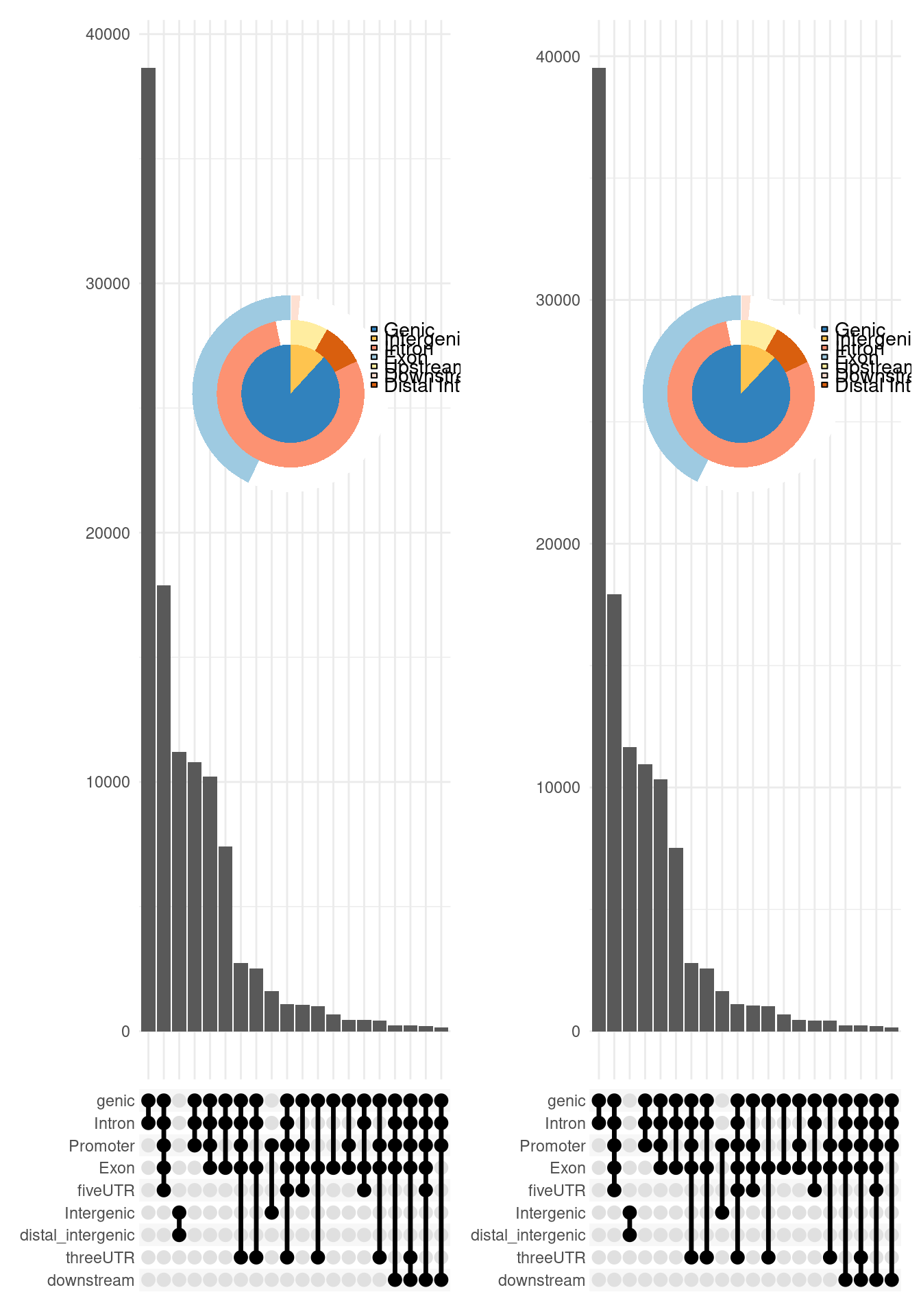

Left: Healthy — Right: PASC

upsetplot(resultC$peakAnno1, vennpie = TRUE) | upsetplot(resultC$peakAnno2, vennpie = TRUE)

7.6 Sample D

resultD <- annotate_sample_peaks("Sample_D", "~/data/tasks/liam.kealy/processing/cellranger_SC_ATAC_covid_D")

Left: Healthy — Right: PASC

upsetplot(resultD$peakAnno1, vennpie = TRUE) | upsetplot(resultD$peakAnno2, vennpie = TRUE)
